High Quality Portable Mini Rice Milling Machine Combined With Grain Grinder

FOB Reference Price:Get Latest Price
$5,000.00 - $6,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
MCNMZ-15A
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Henan, China (Mainland)
Brand Name:
Macro
Production Capacity:
600-900kg/h
Voltage:
380V
Power(W):
37kw
Weight:
1250kg
Dimension(L*W*H):
3400*1500*2900mm
Certification:
ISO9001 CE
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Engineers available to service machinery overseas
Product name:
Rice Mill Machine
Name:
Mini Combined Rice Milling Machine
Model:
MCNMZ-15A
Function:
Husk Separating
Capacity:
600kg-900kg/h
Application:
Rice Milling Industry
Usage:
Rice Polisher Whitener
Feature:
Low Breakage Rate
Type:
Rice Mill Production Line
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packing with standard wooden case
Port
Qingdao/Shanghai/Guangzhou
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated

Combined Rice Milling Machine Rice Husking Production Line



Introduction of Rice Mill Combined Rice Husking Production Line

MCNMZ-15A Complete Set Combined Rice Mill combined with TQLQ45 combined paddy Cleaner and De-stoner, 6’’ Rubber Roller Husker, Separator, Rice Whitener, Rice Grader, Conveyors. It features great brown rice separating and rice polishing performance, easy operation, convenient maintenance and high working efficiency, reducing the leftovers at the maximum level; with optional brown rice direct outlet, provides users a flexible multifunctional rice milling solution. At the meantime, we reserved the possibility to match the follow up equipment such as Multi-Layer Rice Grader, Rice Polisher, Color Sorter etc, to improve the milling performance or extending its functions.

Features of Rice Mill Combined Rice Husking Production Line

1. Automatic operation from the paddy loading to milled white rice/ blown rice/ bran optional.

2. Integrated outfit design, more convenient installation & minimized space occupation.

3. UNIQUE “Re-dehulling” design, improves milling yield.

4. Build-in Paddy Separator, high separating performance.

5. Creative “Emery Roll Whitening” Design, improved rice whitening accuracy.

6. High quality milled white rice & low broken rate.

7. Whitening/Polishing mechanism, low rice temperature, less bran remains.

8. Equipped with Rice Grader System to improve the polished rice level.

9. Unique electric control system, more convenient operation.

10. Improved transmission system, extend the lifespan of wearing parts.

Parameters of Rice Mill Combined Rice Husking Production Line





1Combined paddy cleaner and de-stoner2Single conveyor3Double conveyor4Rubber roller husker
5Electric control box6Gravity paddy separator7Emery roller rice mill8Rice grader
Model6LN-15/15SD
Rated output600-800( kg/h)
Matched power 19.87-24.62(kW)
Rice milling rate68-72%
Small Broken rice rate<2%
Rubber roller dimensionφ225×152mm
Emery roller dimension

φ150×400mm
Overall weight1250(kg)
Working dimension3400×1500×2900mm
Packing size

1530×1320×2280mm

1200×750×1550mm
580×300×2950mm














Core Competitivenessof Rice Combined Husking Production Line

1. Combined Paddy Cleaner and De-stoner
Interference-free independent structures for paddy cleaning and de-stoning, greatly improved the performance from traditional unibody design.
Multi-layer reciprocating vibrating separation mechanism with high impurity cleaning efficiency, reduced leftovers;
Strong air-suction structured de-stoner, large air volume,  excellent de-stoning efficiency;
High-intensity shock absorption bearing configuration strengthened the main machine by high stablility, low vibration, low noise and less dust while working.

2. High Efficiency,low noise husker
Double support mobile gearbox husker integrated reversing gearbox and mobile tightening device, efficiently avoided miscoordination between swinging gears.
Over 90% deshell rate for one time operation.
Durable rubber roller, convenient operation and calibration, high transmission efficiency, low noise and high stability.
3. Innovated inhale-air emery rice mill
Emery rice mill equipped with a large diameter hollow spindle and innovative Emery roller whitening mechanism design.
Strong inhale-air fan sucks in large volume air through milling chamber to reduce rice temperature thus bring down the broken rate, at the mean time bring away the brans to clean the rice and increase the gloss of whitened rice.
Lower operation platform, more convenient operation and daily maintenance.
4. Stable gravity paddy separator

Bigger screen with high separation speed and even paddy distribution.
The horizontal and vertical angles of the screen are adjustable, suitable for all kinds of paddy, great screening and separating efficiency.
Low left paddy for rehusking, reduce the broken rate efficiently.

If you want to improve the rice quality, we recommed follow optional equipments :

5. Multi-layer Rice Grader

The multi-layer rice grader is applied to grade the milled rice by fine rice, heavily broken rice and lightly broken rice.
It also applies to the separation of the similar partical materials.

6. Color sorter
The color sorter sortes out small lesion, rice husk, grass seed, light yellow rice, white belly rice, mildewed rice and stones from fine rice efficiently.

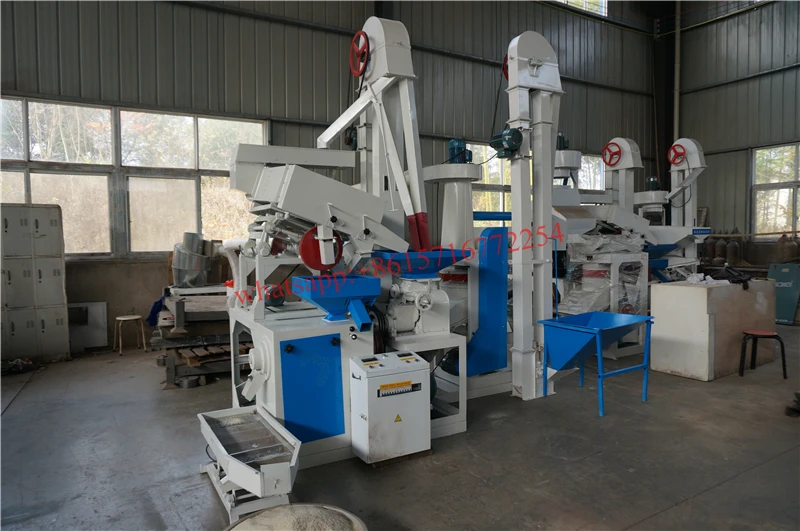

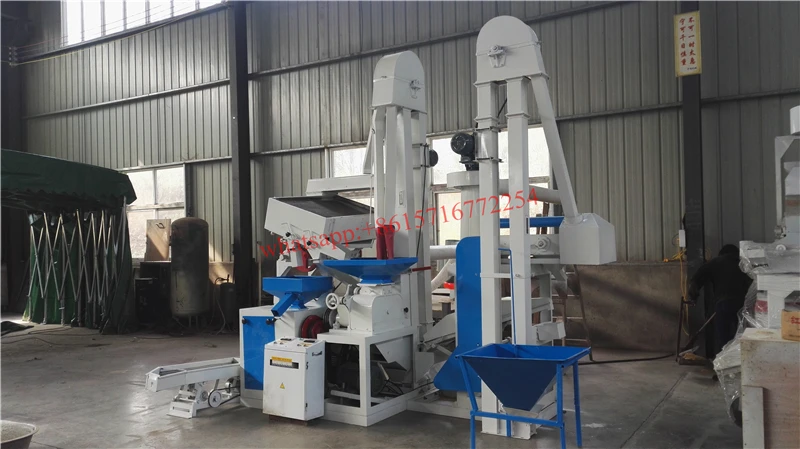

Factory Shows of Rice Mill Combined Husking Production Line







Please Contact with Us!!!
